CYAN 28 |- Versatile PIC development for PIC 24 Devices

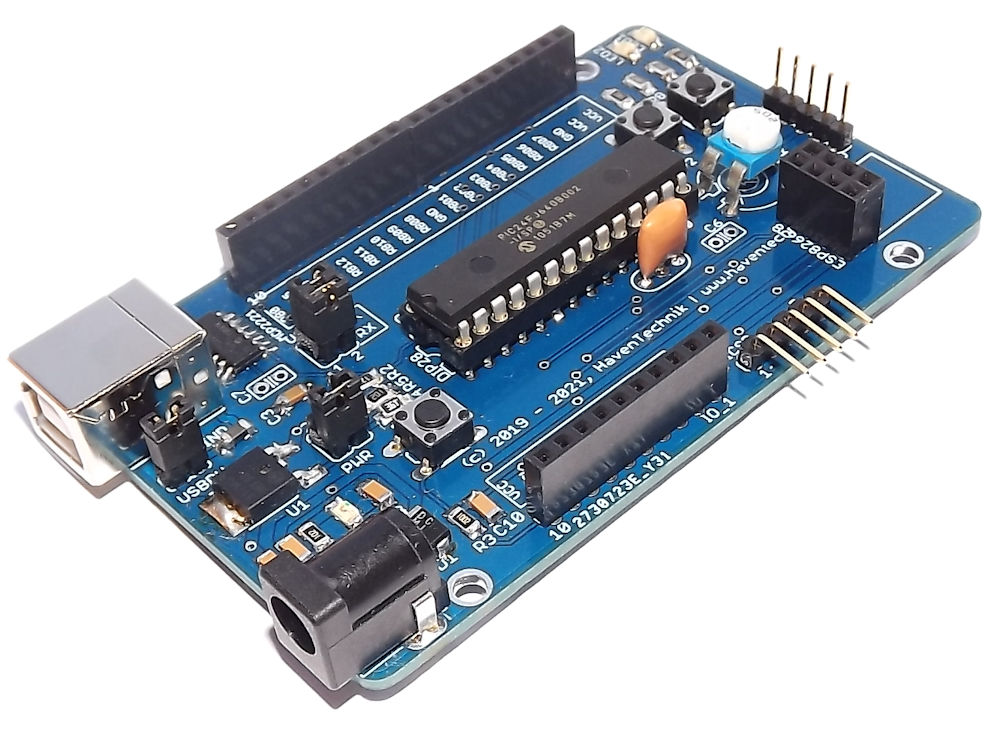

CYAN-28  is a compact and versatile PIC development PCB, economized for size and portability. Supplied with the PIC24FJ64GB002, the PCB delivers an efficient and effective development experience. The PCB includes USB UART, selectable power supply, ICSP header and all IO tracked to headers. A dedicated ESP8266 interface is provided.

Specifications CYAN-28
DC Jack YES
USB Powered Capable YES
Device Programming ICSP 5 PIN Header
3v3 | 5V0 YES
Input Voltage >7Vdc | <9vdc
Package 28 PIN DIP , pre-populated
LED | Reset Button YES
Headers Ported 16 BIT PORT  tracked
USB UART MCP2221
Windows OS Driver support MCP 2221 Driver
Price See online store for current pricing
Purchase

All currency in ZAR, South African Rands



CYAN-28,- what is it?
CYAN-28 is a PIC Microcontroller development platform that allows the avid hobbiyst and professioal user to build applications. The PCB is designed to host the PIC24FJ64GB002 in DIP Package. This family of PIC devices is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc
Features . . .

  • Jumper selectable PSU 3v3 | 5v0
  • USB-UART, self powered
  • Reset button
  • Power LED
  • All IO tracked to headers
  • ICSP header
  • ESP8266 Interface
  • Additional Push buttons, LED and Potentiometer for development
Capabilities
CYAN-28 is designed with future requirements in mind. The compact design supports low power applications, has selectable COMPORT, and selectable voltage.
Deploy Applications
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. CYAN-28 is an ideal, cost effective and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.
