 HavenTechnik designs and manufactures a range of embedded products for automation and system development projects. We leverage embedded technology in our solutions strategy to automate systems and pocesses, integrating these with PC, Service or Mobile Systems. Using the versatile PIC Microcontroller, the team develops solutions and systems using these extensible devices.
  • Automation with SCALAE
    • PLC Styled Systems
    • Ladder Programming Design environment
  • Solutions Monitoring & Control
  • Connectivity and Communication
    • GSM
    • WIFI Controlled Systems
    • IoT Systems
  • Software And Integration
    • C# and .NET Application Development
    • Mobile Apps
  • PIC Development Systems: Radix

See our future products page for exciting up and coming development tools and products.

More info here »
Nature
RADIX,  a series of reprogrammable, multipurpose embedded development boards that enables development of compact systems for 16F/18F PIC devices in different packages. The development boards have a power indicator LED, reset buttom, and IC fitted or DIP IC Holder  that enables you to start developing straight away with minimal technical support and know how.
  • RADIX Variants
    • RADIX Nano for 18, 20 and 28 PIN Devices
    • RADIX DUO for 44 PIN TQFP Devices
    • RADX ECHO for 48 PIN TQFP Devices
  • Tracked Headers - IO Ports easily accessible
  • Reset Button + Power Led
  • USB self powered option
  • USB to UART Bridge - CH340 Family of Devices
  • Selectable  Operating Voltage (3v3|5V0)
  • ICSP Programmable*
  • Bootloader Capable - PIC device dependent
  • Only specific PICs are supported, see the supported devices list

* The ICSP Header is compatiable PICKIT 3 and PICKIT 4, enabling integration wit the standard Microchip tool chain.
More info here »

Sliver: 20 pin PIC Development PCb

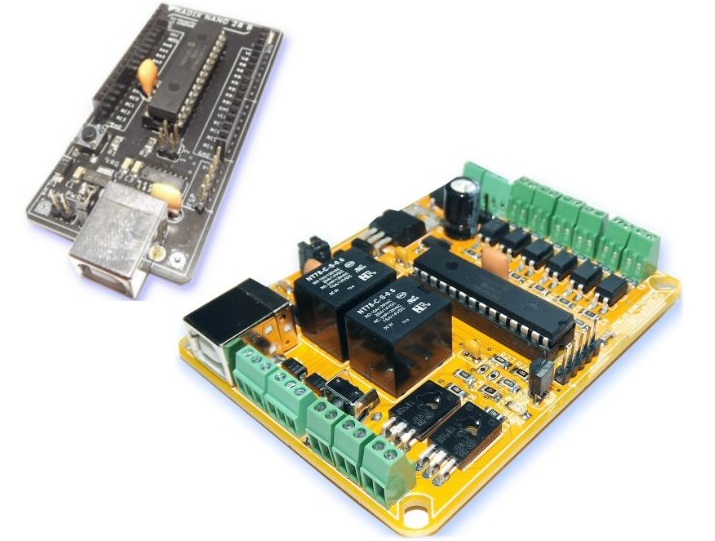

SCALAE  is a reprogrammable, multipurpose embedded development platform with capable PLC styled features.  The units can be DIN rail mounted and drop in as automation system replacements for more expensive alternatives.
  • Optically Isolated inputs
  • Output Options - Device Dependent
    • Transistorised } Buffered outputs

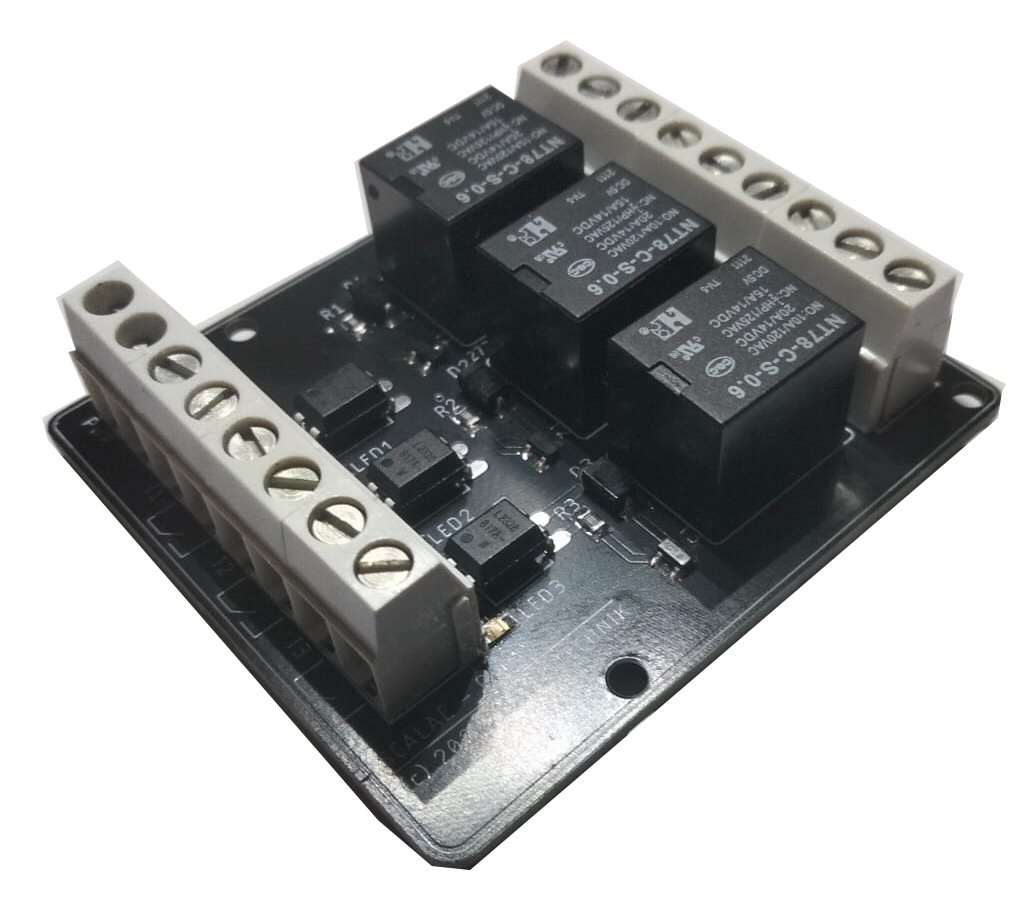

    • Relay Outputs
  • Power Supply
    • Input : AC/DC
    • Operational : Configurable supply
    • LM317 onboard regulator - power selection
  • Programming
    • Bootloader Capable - device dependent
    • Supports specific PIC devices, see supported device list on product page
    • LDMicro available as the software tools
    • The ICSP Header is compatiable with the PICKIT 2, PICKIT 3 and PICKIT 4, enabling integration with the standard Microchip tool chain.

    • More info here »

    * Alternative devices are available on request only.


 PRODUCT RELEASE: SCALAE SENSE

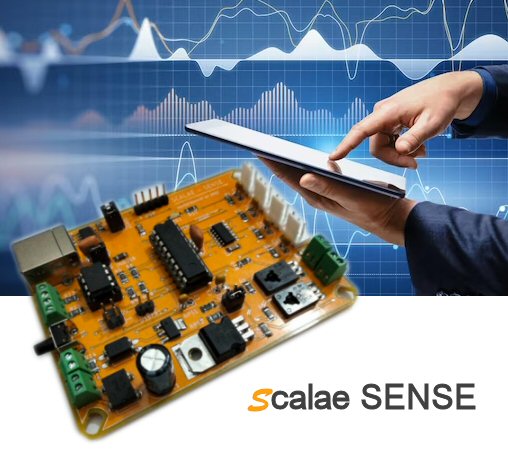

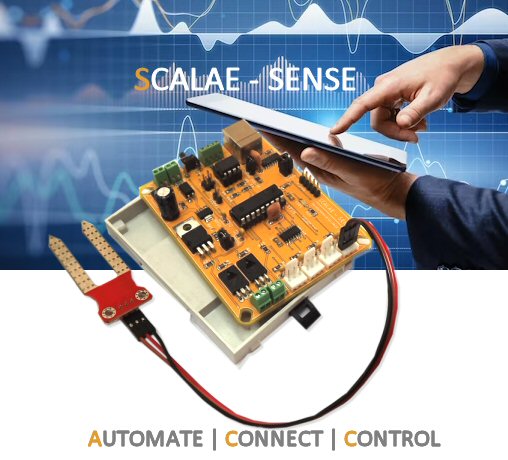

SCALAE SENSE: is a versatile PIC Microcontroller-based PLC. The unit is designed specifically for analogue signal aquisition in automation applications, control systems, small machine automation and other similar systems. With 4 analohue inputs, 1optically isolated input, and 2 darlington outputs,the Scalae is a cost effective platform..

  • Device : PIC16F Devices
  • Type : 18 PIN DIP *
  • USB UART : CH340G included with USB Type B connector for serial COMS, RS485 capable
  • Usage : Automation Solutions / Control Systems
  • Inputs : Opto coupled Input
  • Outputs: 2 x Darlington Transistors
  • Programming: ICSP Header and Bootloader
* Alternative PICs to the PIC 16F1827are available. Enquire for alternatives. Please see the supported devices list for additional supported devices.
Product Page! »     Shop here! »
 PRODUCT RELEASE: RADIX FAMILY

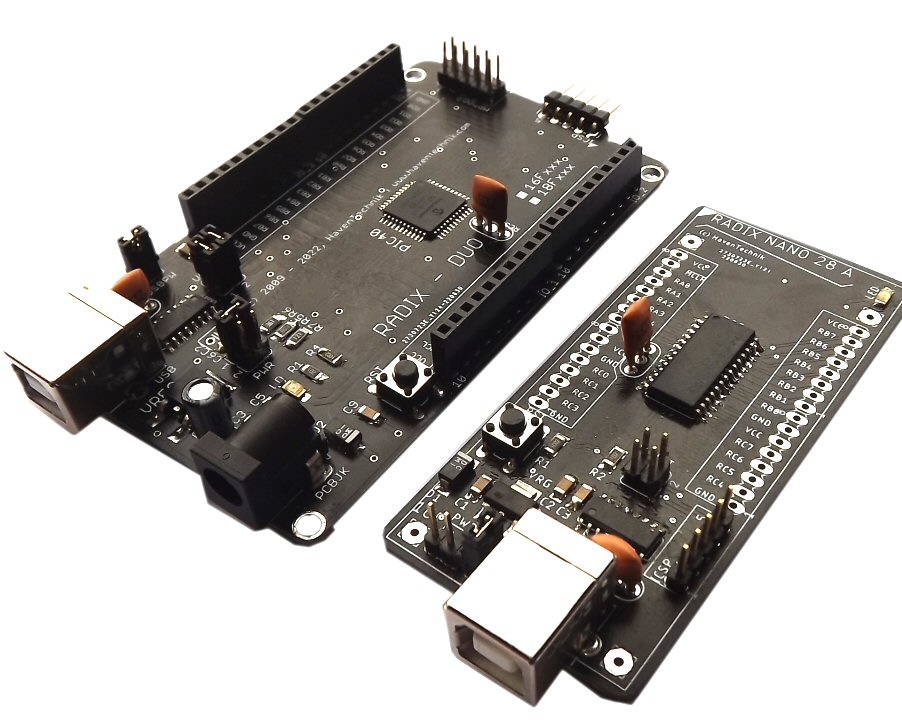

The RADIX  family are a compact and versatile PIC Microcontroller-based rapid development platform. The unit is designed for use in lab or educational environmet to test and develop code. However, this does not limit its use by the professional or serious hobbyist to develop systems and applications.  During the design process the Radix development boards have their MCUs carefully chosen for features, availability and scope of development options. Each PCB is designed with prototyping flexibility in mind, the best power options, tool chain flexibility and I/O accessibility so that the PIC Embedded developer has a practical development tool on their workbench.
  • Device :PIC18 F | PIC16F Devices *
  • Type : 28 SOIC  or 44PIN TQFP **
  • USB UART :  CH340G included with USB Type B connector for serial COMS
  • Usage : Desktop and breadboard
  • IO : Inputs & Outputs Headers Tracked
  • Programming: ICSP Header and Bootloader
  • Supported Devices: Supported Devices List
* The PIC 18F25J50 is available at present for this unit. Enquire for alternatives. Please see the supported devices list for additional supported devices.
* *DIP Varient available
Product Page! »     Shop here! »
 PRODUCT RELEASE: RADIX DUO SHIELD
The RADIX DUO SHIELD  is the ideal addition to a project which extends the capability of the DUO Development board. It maps the IO Pins, and the shield seats on the development board with extended pins.
  • Device :DUO Device *
  • Type : 44PIN TQFP **
  • Usage : Desktop and breadboard
  • IO : Inputs & Outputs Headers Tracked
  • Supported Devices: Supported Devices List
* The IO Labeleing is the same for the PIC16F | PIC18F
* * Compatiable with Sepia, the DIP variante of the Radix DUO
     Shop here! »
