Embedded PIC Based PLC

RADIX -SHIELD | PIC Development Acessorie

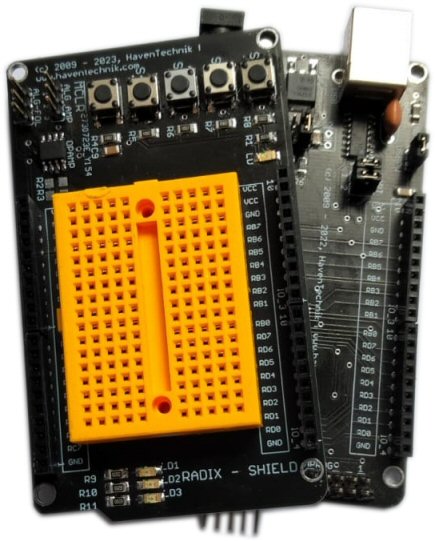

RADIX - DUO SHIELD  is an acessory for the Radix Duo PIC development PCB. Designed to be added to a Radix DUO or Sepia, the PCB enhances your embedded development experience. Providing ease of connection, the platform enables the use of its on board elements and other items that can be connected to prototype new projects, products and systems.


Specifications RADIX - ECHO
DC Header YES
Input Voltage > 7Vdc < 9Vdc
USB Powered Capable USB Connection via base board
Device Programming No
Power Supply Derives power from parent board.
Package None
Device Not device dependant
LED | Reset Button YES
Headers Ported PORTs tracked to headers
USB UART None
Price See purchase options below
Purchase
Flare is bootloader capable, device depdendent.
All currency in ZAR, South African Rands
 What is it?
RADIX - DUO SHIELD is part of a PIC Microcontroller development platform that allows the avid hobbiyst and professioal user to build applications. The PCB is designed to support the PIC16F  & 18F 48 PIN devices. This family of PIC devices is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc
Features . . .

  • Power derived from base
  • USB-UART, self powered
  • Reset button
  • Power LED
  • All IO tracked to headers
  • Opamp for Analog Work
Capabilities
RADIX - DUO SHIELD is designed to facilitate rapid prototyping as a key feature. The compact design is suitable for use with a bread board, and is powered directly from a USB Type connector. A two pin header is available for an auxilary power connection if needed.
Deploy Applications
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. RADIX - DUO SHIELD is an ideal, cost effective addon, and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.
