Radix - Nano | NxT Evolution Development Platform

The Radix Nano is a compact and versatile PIC development PCB, economized for size and portability available in two variants. Supporting the 16F | 18 F 28PIN range of devices, the PCB delivers an efficient and effective development experience. The PCB includes USB UART (useful for boot-loading), onboard power supply, ICSP header and all IO tracked to headers. Available with a selection of devices, see below for device options.

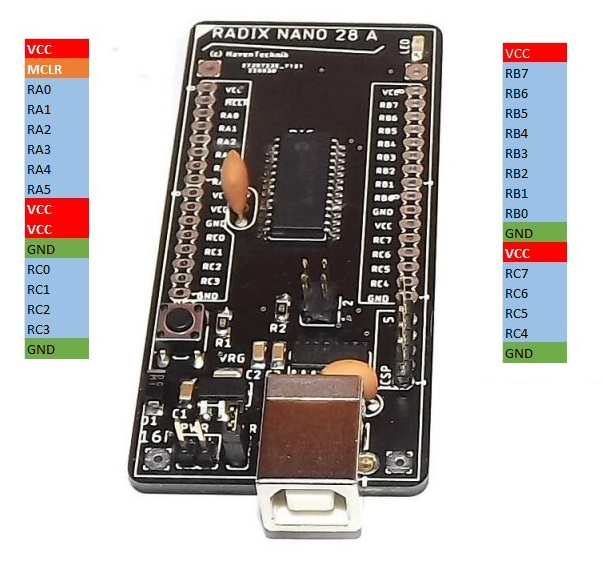

Radix - Nano |- PIN OUTs

The Radix's ergonomic layout allows for ease of use, improving the development experience. The PINs are well-marked and easily accessed through headers. The two options available allow for either a pin or a socket header depending on the needs of the project. Complement the project with a breadboard and a few components for an educational learning experience or a fulfilling hobby project.

Specifications	RADIX-NANO NxT
DC Header	Yes, 2.1mm DC Jack. Reverse polarisation protection built in.
USB Powered Capable	Yes, with surge protection.
Device Programming	ICSP \| USART Bootloader*
Power Supply*	5vdc only for NxT Previous or bespoke versions may offer a configurable power supply.
Package - Variant A	SOIC device in the respectice PIN variant
Package - Variant B	DIP Socket, MCU available on checkout unless a default device is offered.
LED \| Reset Button	Yes
Headers Ported	PORTs A, B, C, tracked to headers running parallel to the PCB edges *
USB UART	CH330N : Standard USB UART* CH340G : Standard USB UART ^{* Only available on specific device iterations}
Purchase	Online Store Contact Us About Us Bid Or Buy (SA Only)
_{Radix-Nano is bootloader capable, device depdendent. All currency in ZAR, South African Rands, * For devices that are 3v3 or J types, please ensure to select this option on purchase. ** Device subject to availability owing to component shortages}

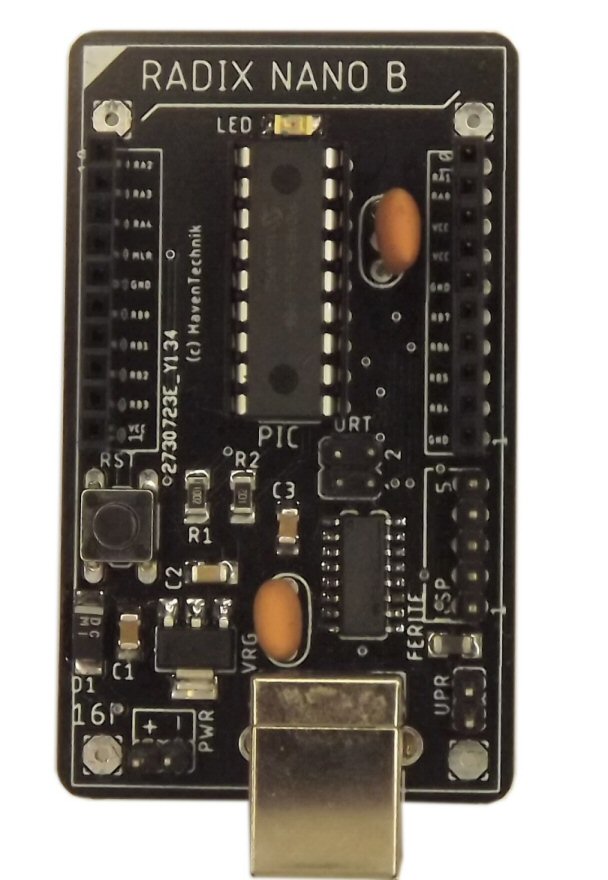

Radix Nano for 18 PIN PICS.

The Radix Nano specifically caters to 18 PIN PIC devices, in both the SOIC and DIP packages. A mainstay of PIC development and a favourite in hobyist style projects. These devices are readily available for use in simple to more sophisticated projects using 8 BIT devices. There are two main family types namely the PIC16Fxx and 18Fxx, each with their own attributes and peripherals. For an 18 PIN device the number of available IO will vary depending on the internal peripherals, and whether there is an internal oscillator option. For the Radix - Nano 18A and 18B, all I/O are tracked with +Vdc and GND, the default resonator is an 8 MHZ resonator*.

*^{For applications that require specific crystal placement, please ensure to include this during resonator selection at checkout.}

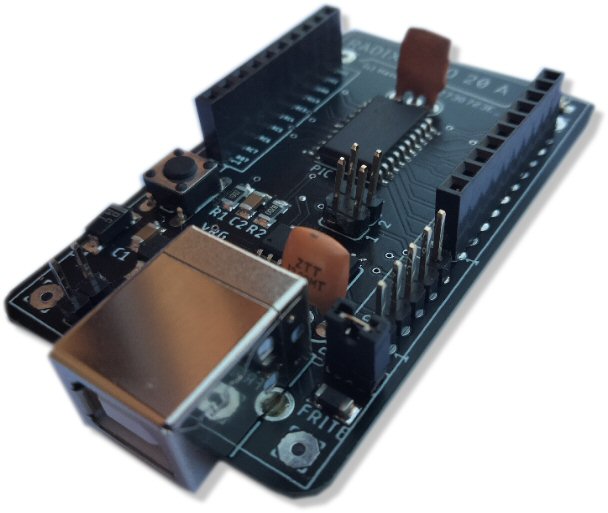

Radix Nano for 20 PIN PICs

The Radix Nano 20 caters to 8, 14 and 20 PIN PIC devices, in both the DIP packages. A versatile and high performance device used in embedded development and a favourite in hobyist and professional style projects. These devices are readily available for use in simple to more sophisticated projects using 8 BIT devices. There are two main family types namely the PIC16Fxx and 18Fxx, each with their own attributes and peripherals. The number of available IO will vary depending on the internal device installed and the features the internal peripherals. All I/O are tracked with +Vdc and GND, the default resonator is an 8 MHZ resonator*.

*^{For applications that require specific crystal placement, please ensure to include this during resonator selection at checkout.}

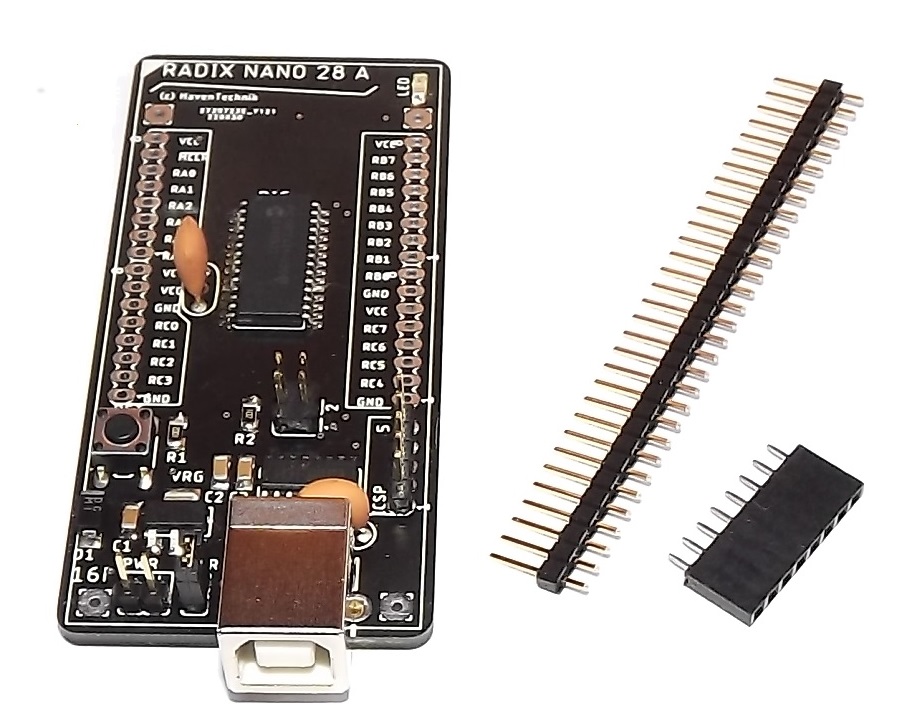

Radix Nano for 28 PIN PICS

The Radix Nano 28 specifically caters to 28 PIN PIC devices, in both the SOIC and DIP packages. A versatile and high performance devices are a smaller varient of their 40/44 PIN varients used in embedded development. To migrate to the 40/44 PIN variant, see the Radix Duo for more information. These devices are readily available for use in simple to more sophisticated projects using 8 BIT devices. There are two main family types namely the PIC16Fxx and 18Fxx, each with their own attributes and peripherals. For a 28 PIN device the number of available IO will vary depending on the internal peripherals, and whether there is an internal oscillator option. For the Radix - Nano 28A and 28B, all I/O are tracked with +Vdc and GND, the default resonator is an 8 MHZ resonator*.

*^{For applications that require specific crystal placement, please ensure to include this during resonator selection at checkout.}

Radix Nano - what is it?

Radix-Nano NxT is a PIC Microcontroller development platform that allows the avid hobbiyst and professioal user to build applications. The PCB is designed to support the PIC16F & 18F 8, 14, 18, 20, 28 PIN* devices. This family of PIC devices is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc.
^{* Not all devices are supported by the same PCB. The range supports the devices as a platform and selecting the right device to suit the right PCB is required.}

Features . . .

Auxilary 5v0 PSU
USB-UART, self powered
Reset button
Power LED
All IO tracked to headers
ICSP header

Capabilities

Radix-Nano is designed to facilitate rapid prototyping as a key feature. The compact design is suitable for use with a bread board, and is powered directly from a USB Type connector. A two pin header is available for an auxilary power connection if needed.

Deploy Applications

Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. Radix-Nano is an ideal, cost effective and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.

Product Resources

Document Title	REV	Description
 Getting Started Gudie : Radix Nano	REV 1	Overview document which outlines first steps to using the Radix Nano.
 CH340 Driver	Current	CH340 G Driver for windows based PCs
