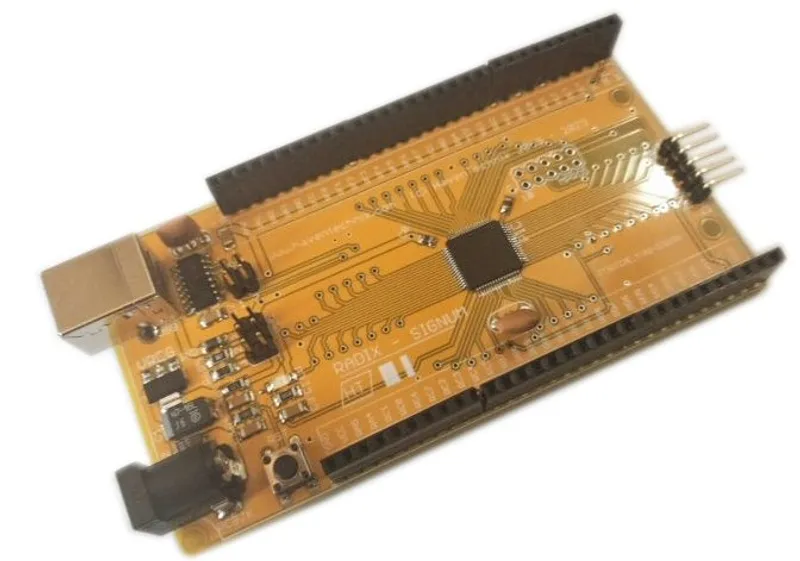

RADIX  SIGNUM | Versatile PIC development PCB for 64 PIN 8 - BIT Devices

RADIX SIGNUM  continues the theme of compact and versatile PIC Development for 8-BIT devices, extending the standard layout designed for an 18-PIN layout to a 64-PIN configuration. The SIGNUM is designed to facilitate system development for the 64 PIN devices, which takes advantage of the extended I/O and peripherals. Where a device with fewer features may only support one role or function, the expanded I/O of a larger PIN device enables multiple role to be consolidated and managed by a single device. Managing the consolidated roles does require competent programming.

RADIX - SIGNUM is ideal for use in many different types of projects from simple automation, to automotive to analogue applications. Enhance your development options by including the shield in your purchase. The devices available are also suitable for automotive applications.

RADIX  DUO |- General Specifications for the DUO Range
DC Jack YES
USB Powered Capable YES
Device Programming ICSP | USART Bootloader
3v3 | 5V0 YES
Input Voltage > 7Vdc | > 9 Vdc
Package 44 PIN TQFP, pre-populated
LED | Reset Button YES
Headers Ported PORTs A, B, C,D,E, F, G  tracked
Reccomended Device Recomended Device Family
USB UART V 1CH340G Windows Driver Support
Purchase Options
Purchase from our store
All currency in ZAR, South African Rands



RADIX SIGNUM,- what is it?
RADIX SIGNUM is a PIC Microcontroller development platform that allows the avid hobbiyst and professioal user to build applications. The PCB is designed to host the 64 PIN TQFP Package. This family of PIC devices is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc
Features . . .

  • PIC16F or PIC18F Microntroller
  • Jumper selectable PSU 3v3 | 5v0
  • USB-UART, self powered
  • Reset button
  • Power LED
  • All IO tracked to headers
  • ICSP header
Capabilities
RADIX-SIGNUM is designed to cater to existing devices and families. The introduction of newer devices and families enhances the capabilities of the RADIX - SIGNUM family. If you have a specific device that you need, please contacts us. Two devices are on offer, namely the PIC18F6410 and the PIC16F1527. Alternative devices are also available on request.
Deploy Applications
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. RADIX-SIGNUM is an ideal, cost effective and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.
Product  Resources
Document Title REV Description
 Product Documentation : Radix Signum REV 1 Overview document which outlines first steps to using the Radix Signum.
 CH340 Driver Current CH340 G Driver for windows based PCs
