PIC Development for 48 PIN 16F|18F devices.

RADIX - VADO |- Versatile PIC development Board for 48 PIN Devices

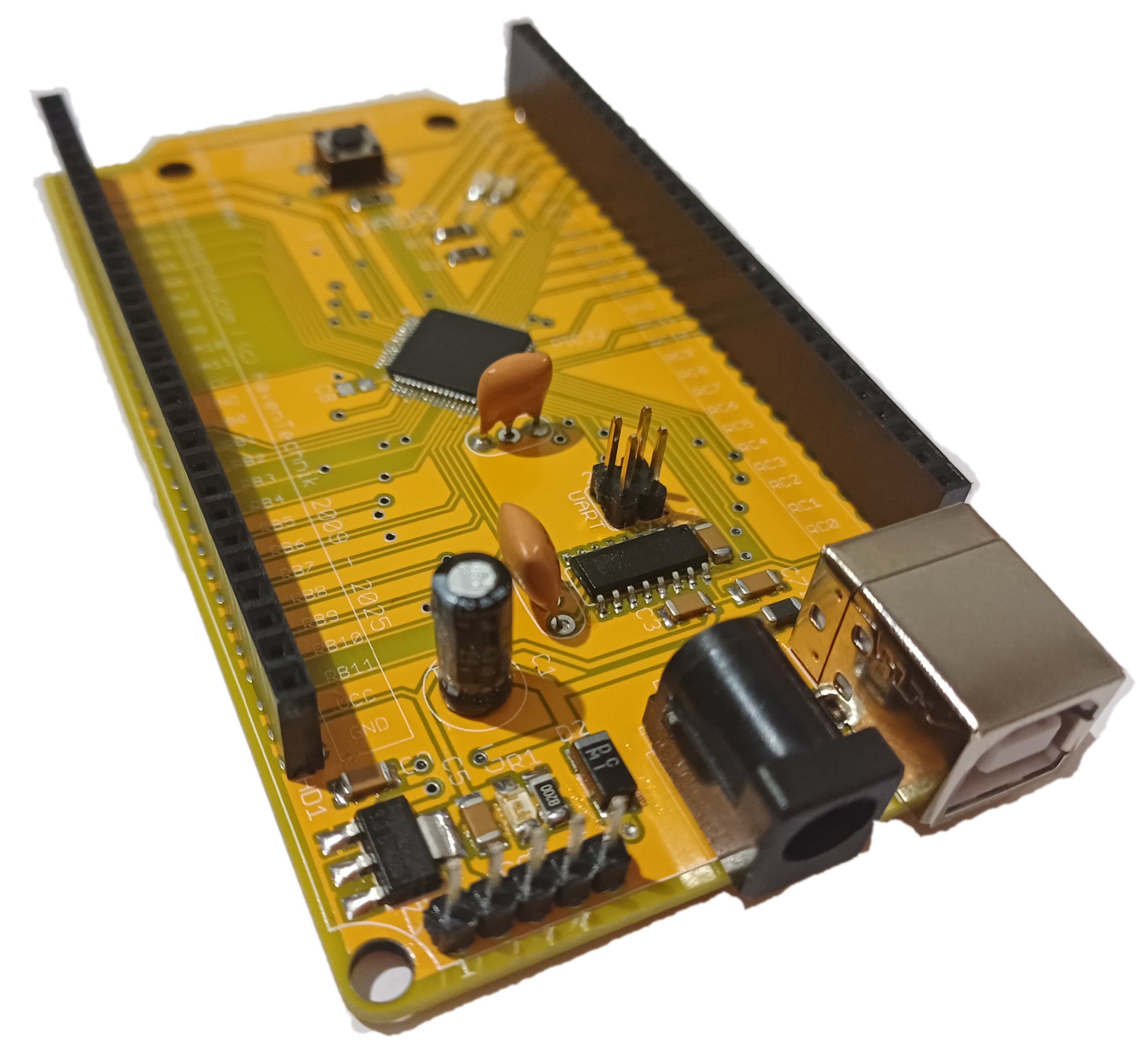

RADIX | VADO  is a compact and versatile PIC development PCB, economized for size and portability. Supporting the PIC32A range of devices. The Radix | Vado delivers an efficient and effective development experience. The PCB includes USB UART (useful for boot-loading), onboard power supply, ICSP header, and all IO tracked to headers.



RADIX - ECHO | Technical Specifications
Specifications RADIX - VADO
DC Jack 2.1 mm
Input Voltage >5Vdc - 7Vdc
Operational Voltage >3.3 Vdc
USB Powered Capable YES
Device Programming ICSP
Power Supply AD1117 based configurable PSU, setting for 3v3 only.
Package 64 TQFP
Device Available Devices: PIC32A
LED | Reset Button YES
Headers Ported PORTs tracked to headers
USB UART CHG340
Price See purchase options below
Purchase
All currency in ZAR, South African Rands
 RADIX-VADO: what is it?
RADIX - VADO is a PIC Microcontroller development platform that allows the avid hobbiyst and professioal user to build applications. The PCB is designed to support the PIC32A 64PIN devices. This family of PIC devices is highly capable with many on board peripherals, digital IO, A2D, Serial coms, etc
Features . . .

  • AD1117 base PSU with setting for 3v3
  • USB-UART, self powered
  • Reset button
  • Power LED
  • All IO tracked to headers
  • ICSP header & Mikroprog header
Capabilities
RADIX - VADO is designed to facilitate rapid prototyping as a key feature. The compact design is suitable for use with a bread board, and is powered directly from a USB Type connector. A two pin header is available for an auxilary power connection if needed.
Deploy Applications
Embedded applications range from standalone systems which control a single element, to wired or wireless applications interconnected for reporting and monitoring. RADIX - ECHO is an ideal, cost effective and well supported tool with an efficient tool chain that will assist in completing projects and getting products to market.
Documentation Resources
Document Title REV Description
RADIX - Vado Documentation 1 - Original Release Technical document which describes the RADIX, how to use the product and basic technical information.
